Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability

PLC Splitter is based on the Planar Waveguide Technology. It provides a low cost lift distribution solution with small form factor and high reliability.

Low Insertion loss

Low PDL

Wide Operating Wavelength

Compact Design

PLC Splitter is based on the Planar Waveguide Technology. It provides a low cost lift distribution solution with small form factor and high reliability.

Low Insertion loss

Low PDL

Wide Operating Wavelength

Compact Design

PLC splitters are made by depositing a waveguide layer (silicon dioxide) on a silicon substrate, then a ribbon fiber is welded to the resulting chip. Thereby to this technology, they can combine heat resistance, miniature size and a wide operating wavelength r...

PLC splitters are made by depositing a waveguide layer (silicon dioxide) on a silicon substrate, then a ribbon fiber is welded to the resulting chip. Thereby to this technology, they can combine heat resistance, miniature size and a wide operating wavelength range.

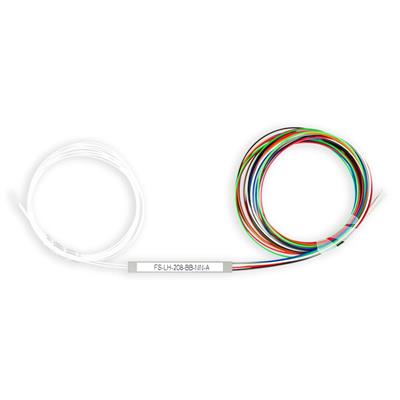

Planar PLC splitter PLC-108-A-NC-9-NC-15 type 1*8 has one input cable with no connector and eight output cables with no connectors as well.

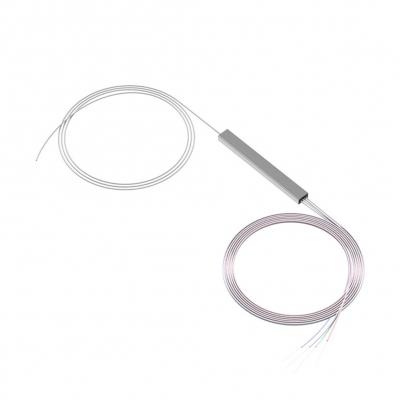

The body of this PLC splitter is a metal tube. Tube size is 60*7*4 mm.
